Sale!
LIMITED TIME SPECIAL!
51 Volt 160Ah High Output Lithium Battery Kit
$3,750.00

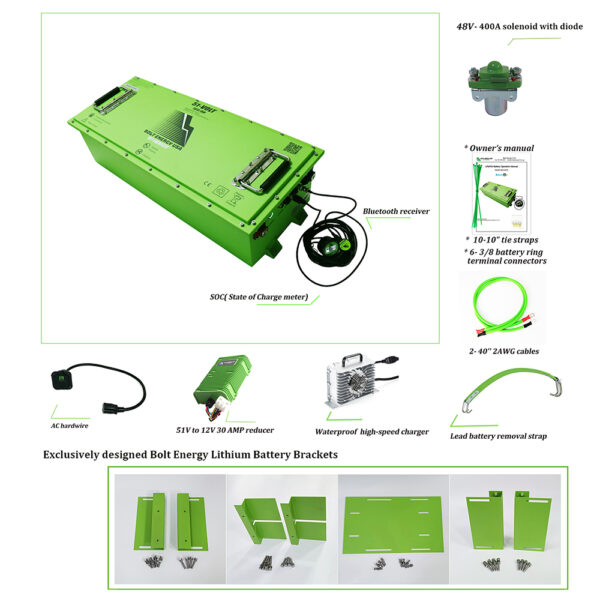

- 51V-160AH BATTERY
- Bluetooth receiver
- SOC (state of charge meter)
- AC hardwire/M-10 plug or OEM plug
- 50 amp reducer
- Waterproof high speed charger
- Mounting brackets, nuts & bolts
- 51V- 400A solenoid with diode
- Lead battery removal strap
- AC Hardwire/onboard charge adaptor
- 2-40″ 2AWG cables
- 6- 3/8 battery ring terminal connectors
- 10-10″ tie straps
- Bolt Energy USA sticker/s
- Installation instructions
- Owners manual
All our golf cart lithium batteries are compatible with these golf cart brands: Advanced EV, Bad Boy Buggy, Bintelli, Club Car DS, Club Car Precedent, Coleman, EZGO TXT, EZGO RXV, Elite, EPIC, Evolution, GEM Cars, ICON, Kandi, Madjax X-series, Navitas Storm, Nivel X-series, Titan, Tomberlin, Trojan EV, Vivid, Yamaha. Bolt Energy USA is compatible with many other carts and electric EV vehicles. Please contact us for more information.
MECHANICAL SPECIFICATIONS
- Dimensions (L x W x H): 32.55 x 13 x 9.13in
- Weight: 164lbs (74kg)
- Terminal Type: M10*1.5*25mm
- Cell Configuration: 1P16S
- Case Material: Powder Coated Steel
- Enclosure Protection: Designed with IP67 Stardard
- Cell Type – Chemistry: Prismatic- LiFePO4
DISCHARGE SPECIFICATIONS
- Maximum Continuous Discharge Current: 250A
- Peak Discharge Current: 520A ± 15.6A (30S)
- BMS Discharge Current Cut-Off:
- 260 A ± A7.8A (50S)
- 520A ± 15.6A (30S)
- BMS Discharge Voltage Cut-Off: 40V
- Recommended Low Voltage Disconnect: 48.0V
- BMS Reconnect Voltage: 41.6V
- Discharge Temperature: -4 to 149°F (-20 to 65°C)
ELECTRICAL SPECIFICATION
- Nominal Voltage: 51.2V
- Working Voltage: 43.2 – 58.4V
- Recommended Voltage: 48.0V – 57.0V
- Nominal Capacity: 160Ah
- Energy: 8,192Wh
- Capacity @ 25A: 360 min
- Efficiency: 0.99
- Self Discharge: <3% per Month
CHARGE SPECIFICATIONS
- Recommended Charge Current: 5 – 52A
- Maximum Input Current: 350A
- Charge Current Cut-Off: 375A
- BMS Charge Voltage Cut-Off: 58.5V
- Reconnect Voltage: <58.SV
- Charging Temp. Range: 34°F to 140°F (0-60°C)
COMMUNICATION
- Bluetooth: Bluetooth receiver
- CAN: CAN port for testing battery
