72 Volt 105Ah High Output Lithium Battery Kit
$3,750.00

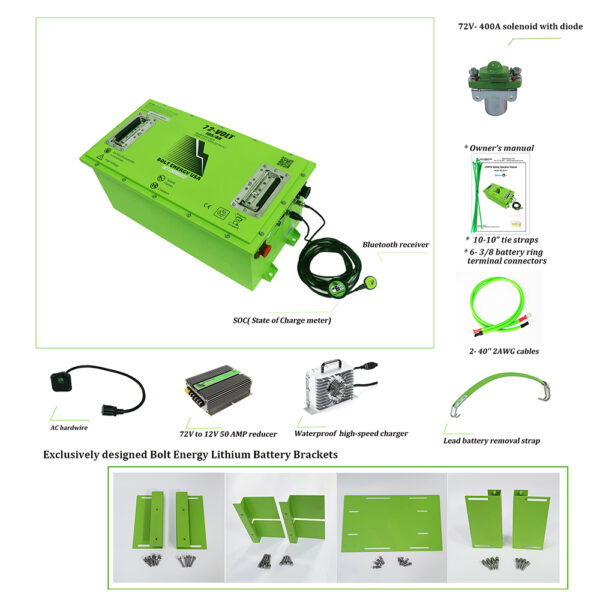

- 72V-105AH BATTERY
- Bluetooth receiver
- SOC (state of charge meter)
- AC hardwire/M-10 plug or OEM plug

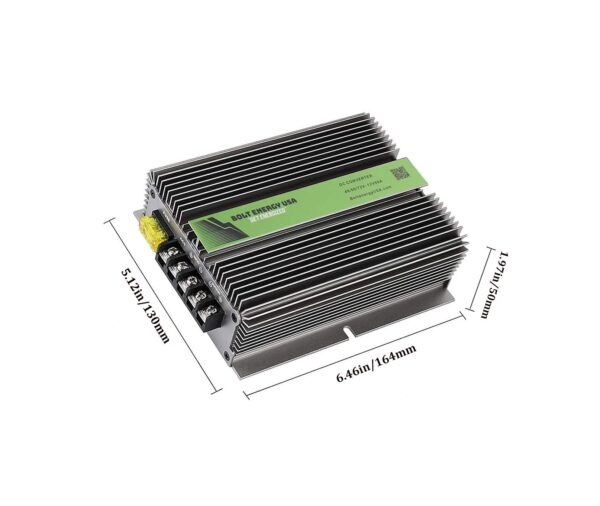

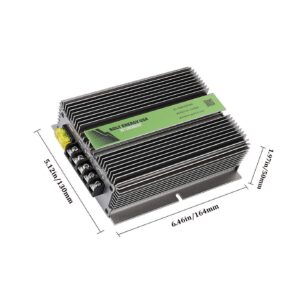

- 50 amp reducer
- Waterproof high speed charger
- Mounting brackets, nuts & bolts

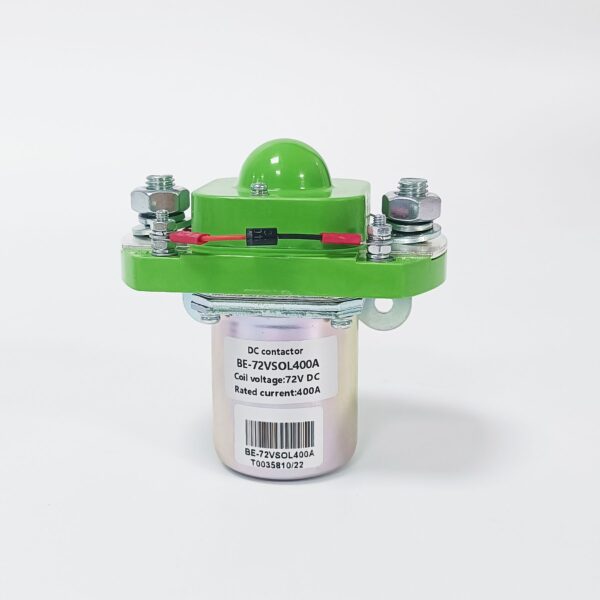

- 72V-400AMP solenoid with diode
- Lead battery removal strap
- AC Hardwire/onboard charge adaptor
- 2-40″ 2AWG cables
- 6- 3/8 battery ring terminal connectors
- 10-10″ tie straps
- Bolt Energy USA sticker/s
- Installation instructions
- Owners manual
Out of stock
All our golf cart lithium batteries are compatible with these golf cart brands: Advanced EV, Bad Boy Buggy, Bintelli, Club Car DS, Club Car Precedent, Coleman, EZGO TXT, EZGO RXV, Elite, EPIC, Evolution, GEM Cars, ICON, Kandi, Madjax X-series, Navitas Storm, Nivel X-series, Titan, Tomberlin, Trojan EV, Vivid, Yamaha. Bolt Energy USA is compatible with many other carts and electric EV vehicles. Please contact us for more information.
MECHANICAL SPECIFICATIONS
- Dimensions (L x W x H): 23.62 x 12.17 x 10.35in
- Weight: 145lbs (65kg)
- Terminal Type: M10*1.5*25mm
- Cell Configuration: 1P23S
- Case Material: Powder Coated Steel
- Enclosure Protection: Designed with IP67 Stardard
- Cell Type – Chemistry: Prismatic- LiFePO4
DISCHARGE SPECIFICATIONS
- Maximum Continuous Discharge Current: 250A
- Peak Discharge Current: 520A ± 15.6A (30S)
- BMS Discharge Current Cut-Off:
- 260 A ± A7.8A (50S)
- 520A ± 15.6A (30S)
- BMS Discharge Voltage Cut-Off: 57.5V
- Recommended Low Voltage Disconnect: 69V
- BMS Reconnect Voltage: 60V
- Discharge Temperature: -4 to 149°F (-20 to 65°C)
ELECTRICAL SPECIFICATION
- Nominal Voltage: 73.6V
- Working Voltage: 62 – 83.95V
- Recommended Voltage: 69V – 81.93V
- Nominal Capacity: 105Ah
- Energy: 7,728Wh
- Capacity @ 25A: 420 min
- Efficiency: 0.99
- Self Discharge: <3% per Month
CHARGE SPECIFICATIONS
- Recommended Charge Current: 5 – 52A
- Maximum Input Current: 350A
- Charge Current Cut-Off: 375A
- BMS Charge Voltage Cut-Off: 84V
- Reconnect Voltage: <84V
- Charging Temp. Range: 34°F to 140°F (0-60°C)
COMMUNICATION
- Bluetooth: Bluetooth receiver
- CAN: CAN port for testing battery
